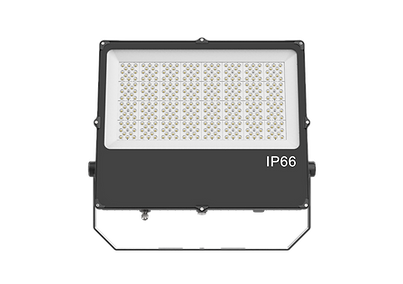

LED Flood Light Vantage 08

Genesis One Lighting – LED VANTAGE 08 Flood Light

Wattage Range: The series covers a wide range of power options: 10W, 20W, 30W, 50W, 80W, 100W, 120W, 150W, 180W, 200W, 240W, 300W, and 400W.

Correlated Color Temperature (CCT): Standard options include 3000K, 4000K, 5000K, and 6500K
Luminous Efficiency: High efficiency of 150–170 lm/W
Power Factor (PF): >0.9.
Total Harmonic Distortion (THD): ≤15%.
Colour Rendering Index (CRI): Ra >80.
Optical & Electrical Components
LED Type: Utilizes Lumileds 3030 LEDs.
Drivers: Equipped with SOSEN or MOSO LED drivers.
Beam Angles: Multiple optical lens options are available, including:
Standard: 30°, 60°, 90°, and 120°.
Asymmetric/Specialty: T2M and T3M.
Lens configurations include 12-in-one and 16-in-one lens arrays depending on the specific model.
Mechanical & Environmental
Lifespan & Warranty: Designed for a long lifespan with good heat dissipation; backed by a 5-year warranty.
Ingress Protection: Rated IP66 for dust and water resistance.
Material: Constructed with integrated die-casting ADC12 aluminum housing and tempered glass.
Operating Temperature: -40°C to 50°C.
Voltage Input: AC100V–240V at 50/60Hz.

Installation and Applications

Mounting: Features a bracket that can be fixed to walls with adjustable orientation for precise aiming.
Applications: Suitable for billboards, roads, tunnels, bridges, squares, and general building lighting.
5-year warranty for confidence and reliability
