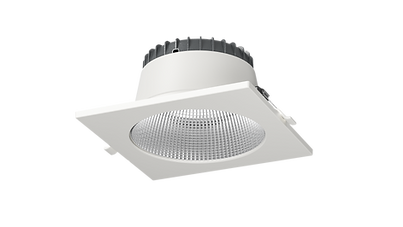

Estrella 15

Core Technical Specifications

Wattage Range: The series offers multiple power options including 10W, 20W, 28W, 35W, 40W, and 50W.
Colour Temperature (CCT): Features a 3CCT selectable option with 3000K, 4000K, and 5700K.
Luminous Efficacy: The lights operate at an efficiency of 100–120 Lm/W.

Power Factor (PF): High power efficiency with a rating of >0.9.
Life Hours: Rated for a lifetime of L70 up to 100,000 hours.
Drivers: Equipped with Flicker-Free drivers; dimming options include Non-dim, 0-10V dim, and DALI dim.
Beam Angles: Standard beam angle options are 60° or 80°. The photometric data indicates an average beam angle (50%) of 64.3° for specific configurations.
Optical & Performance Data
Luminous Flux: Total output ranges from 100 to 6000 Lumens depending on the specific model and power setting.
Colour Rendering Index (CRI/IRC): >80.
Unified Glare Rating (UGR): Designed for low glare with ratings of <19 or 24.
LED Type: Utilizes SMD LED technology.
Mechanical & Environmental Construction
Composition: Built with an aluminum body and available in a white finish.
Protection Ratings:
IP Rating: Standard IP20, with IP64 also indicated for specific modules.
Impact Resistance: IK06.
Temperature Resistance: Working temperature range of -20°C to +40°C.
Glow Wire Resistance: 650°C.
Mounting: The unit is non-tiltable.
Physical Dimensions & Accessories
Luminaire Sizes: Diameters range from Φ114mm to Φ280mm with corresponding cutout sizes from 90mm to 255mm.
Customization: A wide variety of interchangeable accessories are available, including:
PC Covers: Square and round options in white or black finishes.
Reflectors: Multiple finishes including Plaid, Bright Silver, Matt White, Matt Black, and Matt Silver.
Surface Mounts: Steel covers for surface mounting in white or black.
Compliance & Warranty
Certifications: CE, CB, and ROHS certified.
Warranty: Covered by a 5-year warranty.
